Washing Machines
Leveraging the full-chain synergy of its IDM model, crmicro provides customers with complete solutions for high-reliability brushless motor control, compressors, PFC and main controllers, as well as semiconductor devices，which helps customers achieve efficient, energy-saving, stable and reliable home appliances.
Solution Overview
Targeting the electronic control system of variable-frequency washing machines, the solution integrates a complete set of chips including a wide-input power supply, advanced FOC algorithm for permanent magnet motors, signal isolation, and panel display. Using power devices (IPM/IGBT/SiC MOSFET/SiC diode), PMICs, dedicated high-performance MCUs, gate drivers and optocouplers, it delivers smooth high-torque output and dynamic load adaptation, optimizing overall energy efficiency and shock resistance under frequent start-stop conditions.
Solution Advantages
-
High-integration IPM module drive delivers a quiet, smooth, and powerful variable-frequency motor
-
Optimized power devices reduce energy consumption, and improve appliance energy efficiency class
-
Multiple safety protections, strong anti-interference, more reliable operation
-
MCU FOC algorithm supports multi-mode washing with precise speed regulation, combining fabric care with cleaning performance
-
Fully self-developed technology ensures capacity and cost, supporting stable mass delivery
Solution Overview
Solution Advantages
Solution Selection

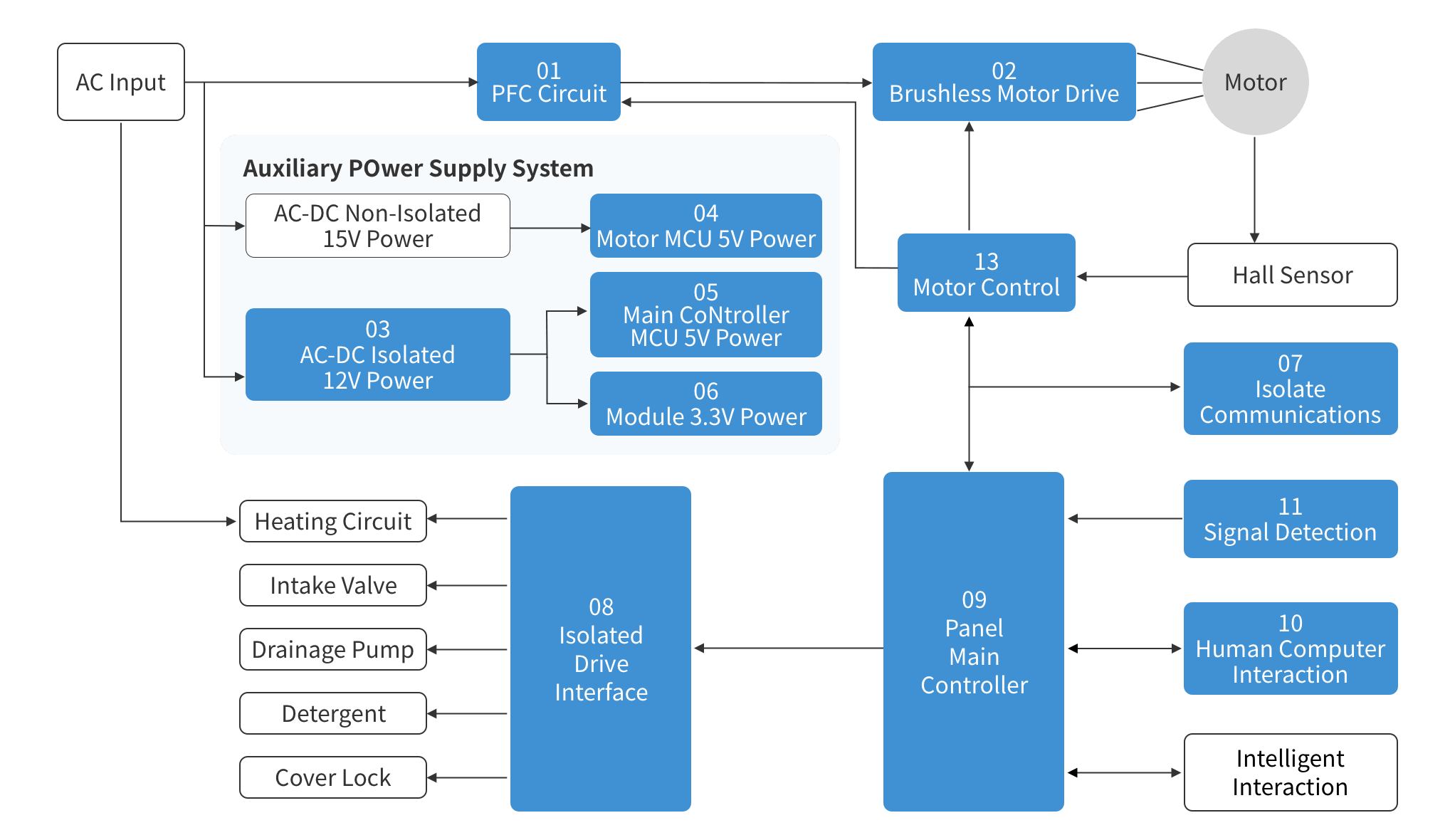

Typical Application Circuit Block Diagram
Washing Machines
Recommended Selection
No.
Product Line
Product Category
Part Number
01
IGBT/SiC
IGBT
CRG10T65A47SD
01
IGBT/SiC
SiC JBS
CRXF10D065G3
01
PMIC
Low-Side Driver
CS42275
01
MOS
SJ MOS
CRJF190N65G4F
02
IPM
Three-phase Full-bridge IPM Module
CS5765NGO
02
IPM
Three-phase Full-bridge IPM Module
DPM06T60CG4
02
IPM
Three-phase Full-bridge IPM Module
DPM10T60CG4
02
IPM
Three-phase Full-bridge IPM Module
DPM15C60FG4
03
PMIC
AC-DC Flyback
PT2531
03
ISBG
Optocoupler
PC817x
03
PMIC
Voltage Reference
CW431
04
PMIC
Linear Regulator
CW78L05
04
MCU
Motor MCU
CS32ME11
04
MCU
Motor MCU
CS32ME13
05
PMIC
Linear Regulator
CW78L05
06
PMIC
DC-DC Buck
PT1222
07
ISBG
Optocoupler
PC817x
08
ISBG
Optocoupler
HK305x
08
ISBG
Optocoupler
HK357x
08
ISBG
Optocoupler
PC817x
09
MCU
General-purpose MCU
CS32F003
09
MCU
General-purpose MCU
CS32F030
10
PMIC
Display Driver
CS1650
10
PMIC
Display Driver
CS1628
11
Chipnext
Zero-Drift High-Precision Operational Amplifier
CN8552
